UL-listed · Built by Legacy ControlsControl Panels
Every panel is built for the equipment it ships with. Breakers sized to the actual pump, terminals numbered and legended, and the whole thing run on the bench before it goes in the box.
Legacy Controls, in Mims
Our panels are designed and manufactured by Legacy Controls — not ordered from a catalogue and relabelled. That means the panel that arrives with your treatment plant or lift station was laid out around that specific equipment.
It also means a panel design has a number, a revision and a build date on the label. When somebody opens it in eight years, the drawing that matches it still exists.
- UL-listed enclosed industrial control panel, built and labelled per listing
- Panel design number and revision recorded on every unit
- Terminal legend printed inside the door
- Certified components throughout — ELKO EP, TELE, Legacy Shield
- Function tested against the equipment it will control
Panels we build
Each one is a configuration, not a fixed part number — the specification comes from your equipment.

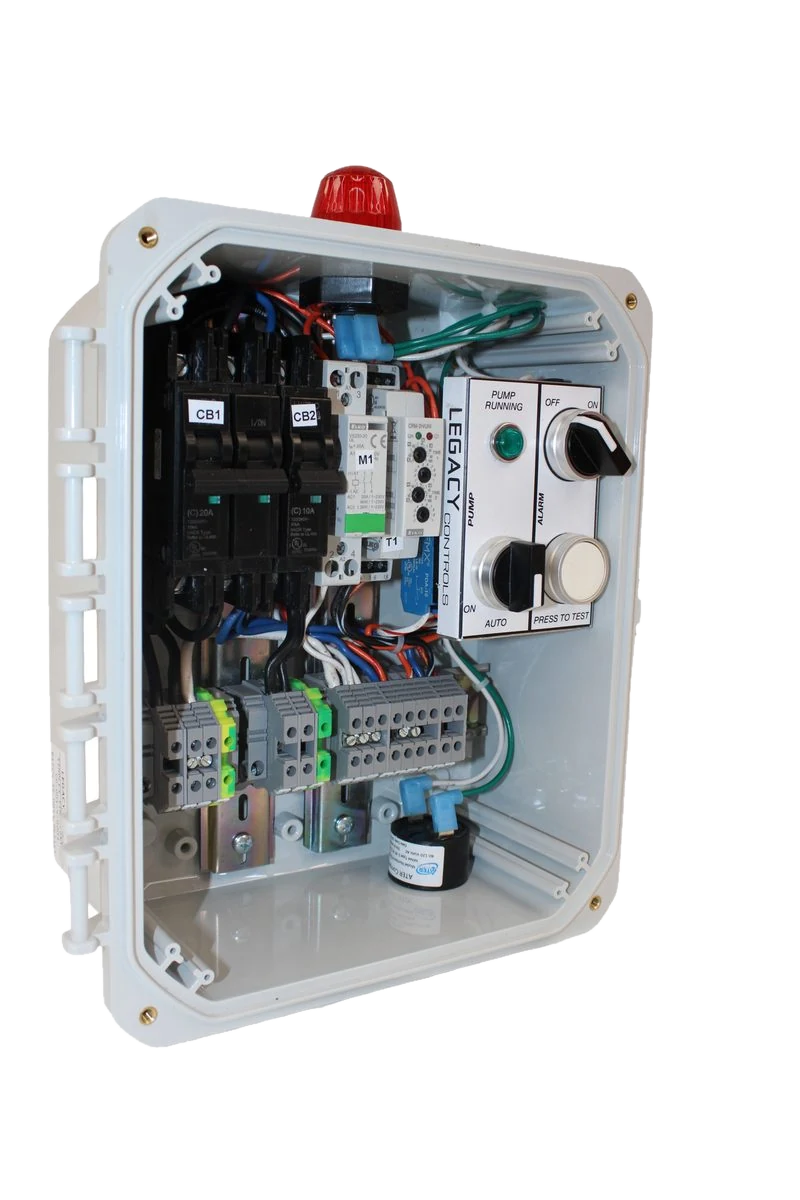

Simplex Pump Panel
Hand/off/auto, run indication, high-water alarm with beacon and silence. Breaker sized to pump FLA.

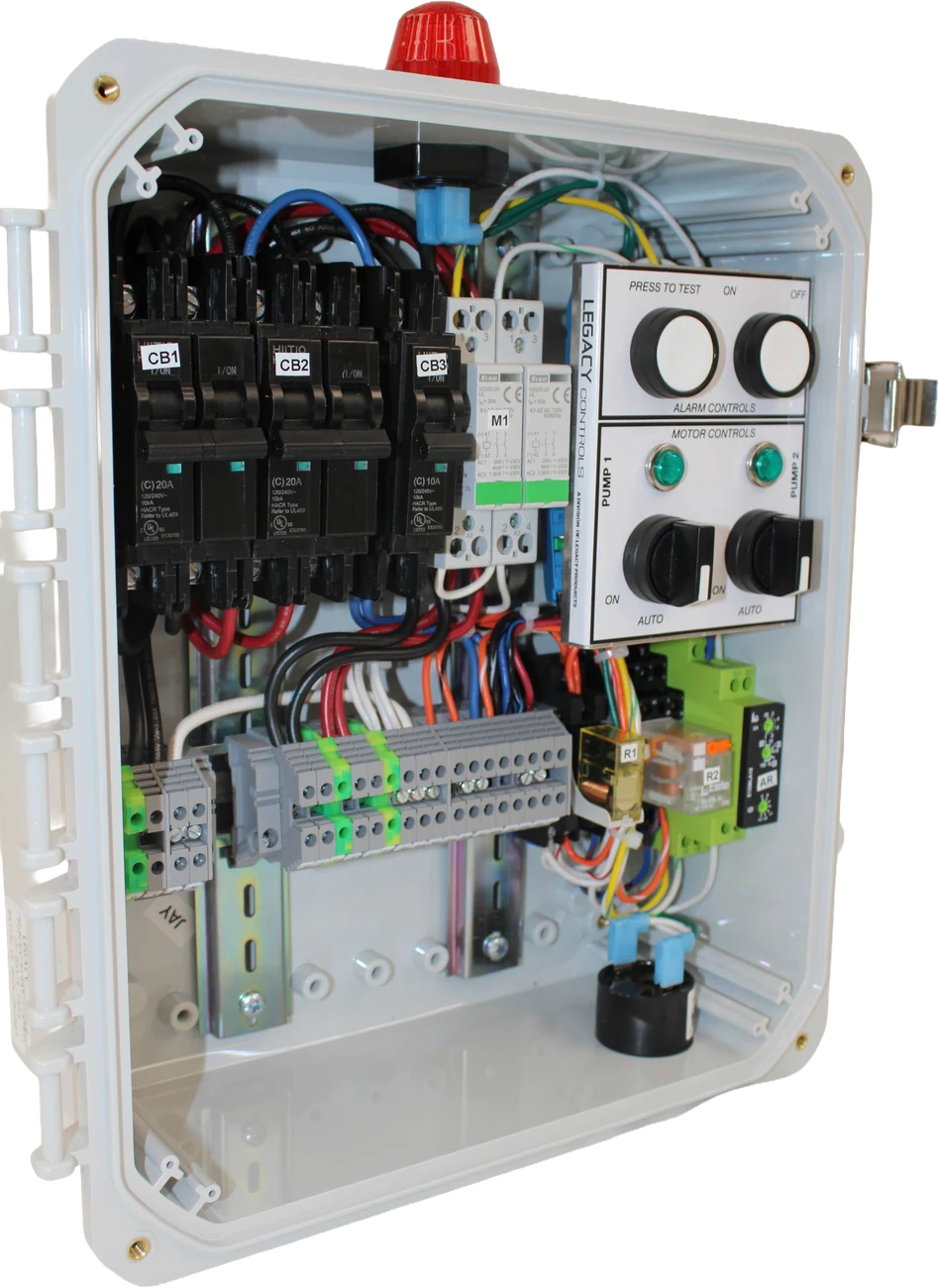

Duplex Pump Panel
Automatic alternation, lag call on high level, independent motor controls and separate branch protection.
UV Panel
Lamp ballast, dual bulb circuits, high-water float and air pump. Type 1 enclosure, 7 A total.
Aerator Panel
Blower control, timed aeration where required, alarm circuit and service outlet. Ships with the plant.
Drip Panels
Zone sequencing, field flush and filter backwash timing, flow and pressure monitoring. Built in house.
Alarm Panels
Available on their own or as a package with a 1/3 HP ATER effluent pump, 30 ft cord and 30 ft piggyback float.
What’s inside
Legacy Shield
Our own UL 489 miniature circuit breakers — 5 to 60 A, 1, 2 and 3 pole, 10 kA interrupt, DIN rail or foot mounted.
TELE
Monitoring and control relays where the application calls for them.
ATER
Effluent pumps and alarm components supplied as part of packaged panels.
Parts, not just whole panels
We stock the components our own panels are built from, so a service call doesn’t become a two-week wait on a part nobody local carries.

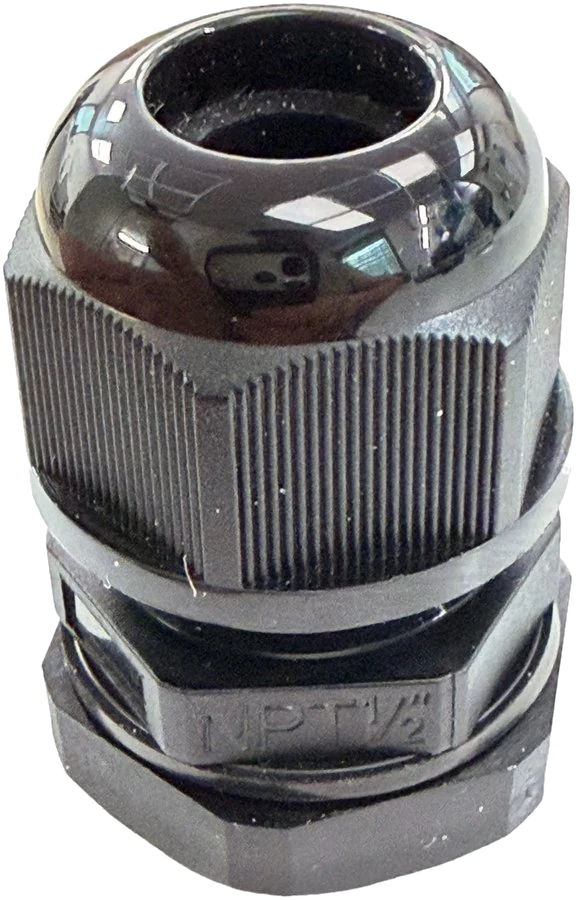

- UL-listed cable glands, 1/2 in NPT and up
- Legacy Shield breakers, 5 to 60 A, 1 to 3 pole
- Contactors, timers and monitoring relays
- Terminal blocks, DIN rail and enclosure hardware
- Beacons, horns and alarm components
Legacy Shield circuit breakers
The MCB series we build our panels around, and sell on their own. UL 489 listed, thermal magnetic, with visible contact position so you can see at a glance whether a breaker is actually open.
| Standard | UL 489 |
| Rated current | 5 – 60 A |
| Rated voltage | 120/240 VAC (1P, 2P) · 240 VAC (3P) |
| Interrupt rating | 10 kA |
| Poles | 1, 2 or 3 |
| Tripping curve | Type C |
| Conductor | 14 – 4 AWG, copper only |
| Terminal torque | 3.5 N·m (31 lb·in) |
| Mounting | 35 mm DIN rail, or feet |
| Protection | IP20 |
Accessories: mounting feet, handle safety lock, safety cover and hand tie. Full catalogue runs to 33 part numbers across the three pole counts.
Tell us what it has to control
Pump make and model, voltage and FLA, how many pumps, what needs alarming, and whether it lives indoors or on a post in the weather. That’s a panel spec.
- Listing
- UL enclosed industrial control panel
- Manufacturer
- Legacy Controls, Mims FL
- Supply
- 120 / 240 VAC, single phase
- Breakers
- Legacy Shield, UL 489, 10 kA
- Components
- ELKO EP, TELE, ATER
- Configurations
- Simplex, duplex, UV, aerator, drip, alarm
- Testing
- Function tested before dispatch
